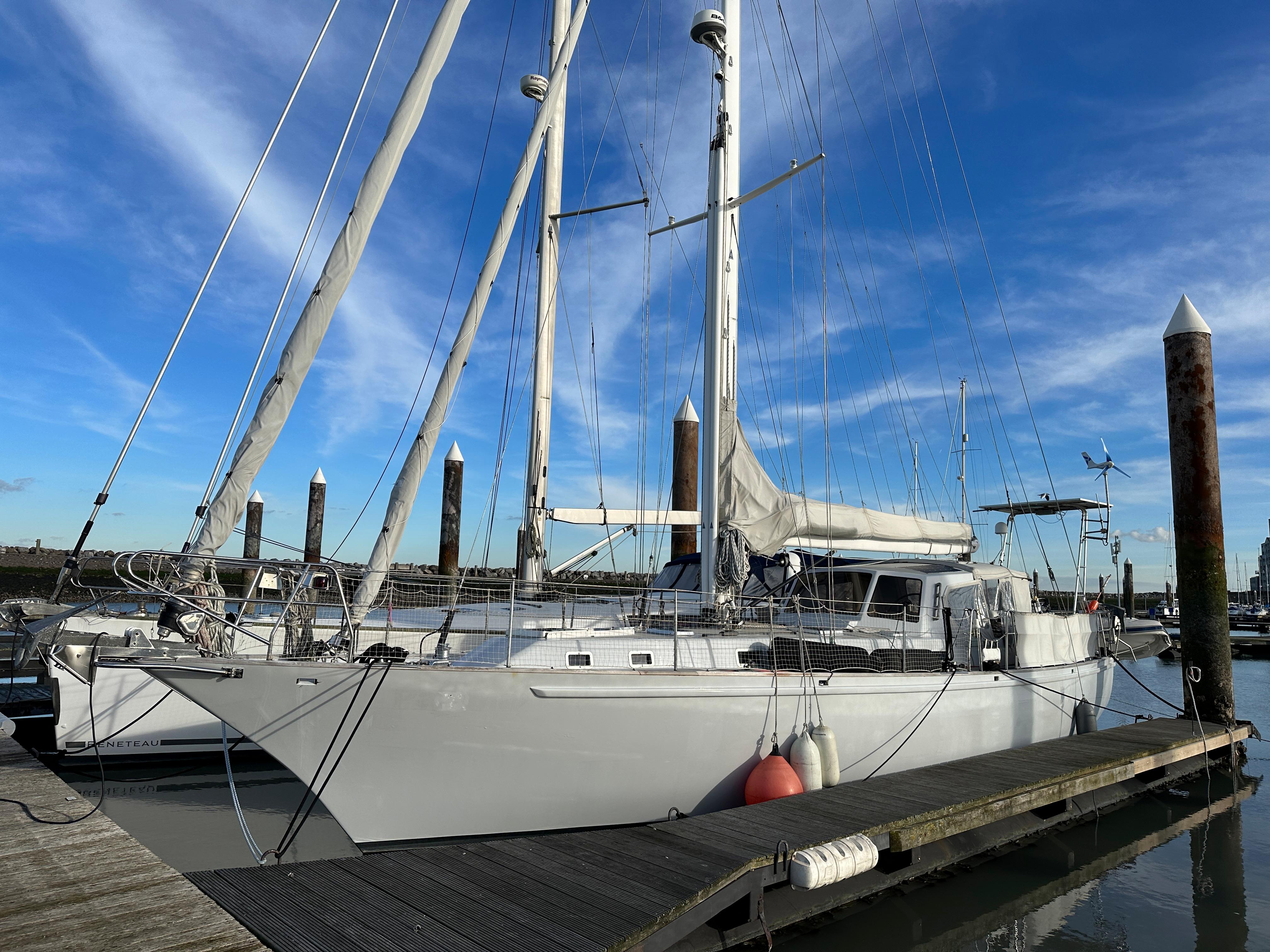

2001 Kalb 5517m

Very exclusive one off, built to a high standard. First water landing in 2013 and rigged summer 2014 for the 1st time. Owner startet building process in 1983. Hull was built by professional company (Sommerfeld in germany, in those days the best name in germany for wooden hulls). 35 mm moulded Sipo mahogany with 2 layer roving / epoxy. This yacht was built for long distance cruising with small crew and live aboard. Installations and detail work are of best quality (Becker rudder, Proctor mast, Reckmann headsail furlers, Beilken sails, KVH electronics, later B&G, and more). The interior is very light, with cabin heights more than 2 m in almost all areas. Very nice woodwork qualitiy. Lot of storage room. Passage way under deck appr. 1,70 m. Washing machine, dryer, cooker with gas and 220V. Very huge head. No head in aft cabin, there is only a toilet in the engine room. But aft cabin is very huge, it´s possible to install an separate head there.

Shape                      round bilged, deep shape
Deck design             Sapeli wood 30 mm
Superstructure          25 mm Sapeli / Makore. Coachroof sides 30 mm Sapeli
Keel/Leeboard          Steel keel with lead ballast. Built at Meyer Papenburg (D)
Rudder                     Steel rudder with skeg. Becker rudder. Balanced.
Steering system        wheel, hydraulic
Windows                  Goiot hatches
Load displacem.(kg)  appr. 20.000
Ballast (kg)               appr. 6.500 kg lead
Vertical clearance      appr. 23 m

ACCOMODATION

Material, colours       Mahogany high gloss. Bulkheads Sipo mahogany white.
Cabins                     3 + salon
Berths                     6
Headroom                2 m
Toilet                       2 x, electr. and maual
Shower/bath            huge shower in front head
Sound system/TV    Radio, no TV
Cooking device        Miele, 2 burner gas, 2 burner ceramic
Oven                       Siemes microwave oven
Fridge                     Yes
Heating                   Webasto, warmwater central heater in all rooms


ENGINE / INSTALLATIONS

Engine Power          85 hp
Make                      Yanmar 4-cylinder
Year built                 2020
Fuel                        Diesel
Fuel tank                 appr. 1000l, stainl steel tank with inspection hatch.
                              day tank appr. 60 l with 2 filters
Propulsion               Prowell 35 mm shaft. Hurth HBW 250 gearbox
Voltage                    24V
Operating panel        Philippi
Batteries                 Service Lithium Lifepro4 800 AH 24 V (2021)
                              Engine Batterie AGM 110 AH 12 V (2020)
                              Bow Truster Batteries 150 AH 24 V (2019)
                              Generator Batteries 55 AH 12 V (2020)
Battery charger        Charger and Inverter Victron 5000, Batterie and Energy Monitor
Generator                Fischer Panda 5000i (2020)
Alternator                120A / 28V
Warm water             Webasto calorifier 80 l (2020)
Water tank              port side appr. 660 l, stb side appr. 980 l. Stainl. steel tanks wit                          inspection ports
Holding tank            PE, appr. 110 l
Shore power
Voltmeter

RIGG / SAILS
Rigg type                Masthead rigged, cutter type with backstays
Spars, stays           Proctor 3 spreader alu 20,5 m length. Dyform wires 10/ 12 mm
Winches                 Lewmar. Hydraulic central winch + 9 ST winches, between 65' and   16'. 2 and 3 speed.
Sails material          Dacron sails in very good quality form Beilken (D). Appr. 20 years old, but 2014 rigged for the 1st time.
Main sail                 Beilken Quadrocut 72 sqm, 400 g, 6 battens. Lose foot leech. Frederiksen mastsliders.
Main sailreefing system: slab reefing
Headsail reefing system: Reckmann 2000/20 and Seldén electric (2021 nieuw). Original Reckmann 2000/30 stored at sailmaker in Heiligenhafen.
Genoa (yankee)       Quadracot 80 sqm, 330/280 g, UV protection.
Headsail                 Furlin jib 34,50 sqm. 450 g. UV protection. Genua II from 2021
Storm jib                Storm jib 19,4 sqm, 480 g. Colour orange
Trysail                    yes
Spinnaker               no spi sail. 2 Proctor booms on mast
Other                     NAVTEC Boomvang. Hydraulic back-, baby and cutterstay. NAVTEC Boomvang. Mast steps foldaway. Winches Lewmar: 2 electr., 1 hydraulic central winch, 2 x ST65, 3 x ST 48, 1 St16.

NAVIGATION

Radar B&G Quadro (2019)
2 Plotter Zeus 16 & 12 (2019)
B&G Deep Sounder (2020)
B&G Media System (2019)
B&G Forward Scan (2019)
B&G AIS Class B (2019)
B&G VHF incl. daughter (Handheld 2019)

EPIRP
B&G Windinstrument
7 B&G Triton 3 configurable displays
6 Speaker in cockpit, salon and master cabin
B&G speed
B&G fishfinder

EQUIPMENT

Anchor             48 kg
Windlass          Lewmar 3000, als stern windlass hydraulisch
Sprayhood        Hardtop, cockpit tent
Davits               strong version
More equipment
