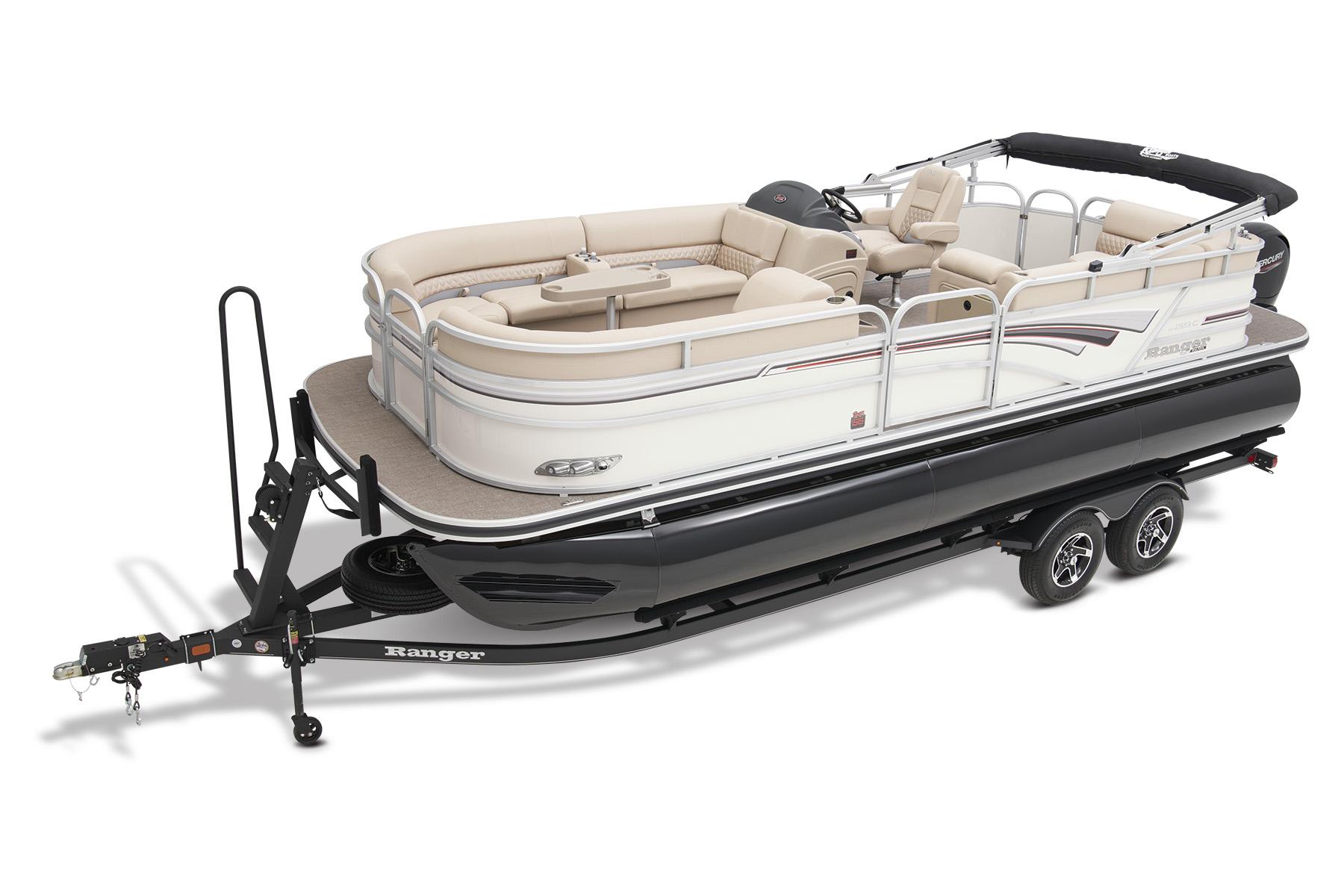

2023 Ranger Reata 223C7m

• Length:24' 2"

• Length: 24' 2"

• Deck Length: 22' 1"

• Deck Width: 102"

• Max. Recommended HP: 200 HP

• Fuel Capacity: 52 gal.

• Pontoon Log Length: 24' 11"

• Pontoon Log Diameter: 26"

• Pontoon Log Material: 0.1 5052 marine alloy

• Max. Person Capacity: 11 persons

• Max. Person Weight: 1500 lbs.

• Max. Persons/Motor/Gear Weight: 2300 lbs.

• Interior Depth: 24"

• Average Dry Weight: 2939 lbs.

• Average Package Weight: 4935 lbs.

• Package Height: 8' 9"

• Package Width: 8' 6"

• Towing Length: 32' 6"

• Storage Length: 32' 6"

Craftsmanship

• ABYC® approved

• 26" (66.04 cm) diameter, .100 pontoon logs w/ individual chambers & internal supports

• 3/4" (1.91 cm) pressure-treated deck w/ every panel mechanically fastened to Z-bars

• All-aluminum, box beam transom

• Full-width extruded Z-bar deck support hidden fastener system

• Fire extinguisher & horn

• Heavy-duty reinforced deck trim

• Heavy-duty, 1-piece extruded M-bracket deck support throughout

• Multi-density furniture foam for maximum comfort

• Premium marine upholstery

• Stainless steel & coated carbon steel fasteners

• Ranger® 10-Year Lifetime Limited Structural Warranty

Electrical

• LED navigation lights & built-in docking lights

• LED courtesy lighting throughout

• Motor kill switch w/ lanyard

• Phone management system w/ power outlets

• Sealed wiring connectors

• Wiring encased in conduit to prevent chafing

• Conveniently located 12V & USB outlets

Exterior

• Special 55th Anniversary badging

• Bold exterior styling combining dimensional chrome graphics & externally-mounted anodized railings

• .040"-thick (1.02 mm) high-sheen fence panels

• Available colors: charcoal metallic, black metallic, Ranger blue, pearl white, or matador red

• Noise-dampening fence insulation

• Stylish deck trim w/ rub rail & highly polished aft corner castings

• 1-1/4" (3.2 cm) railing w/ mooring cover mounting track

• Snapless, trailerable mooring cover w/ removable bow extension for full coverage at home, in the slip or on the road

• 4-step, fold-down, telescoping stainless steel boarding ladder w/ two tall handrails

• Elevated fencing for better drainage & ventilation

• 4 Fold-down stainless steel cleats

• Front porch area

• Full-width swim platform w/ mount for optional ski tow pylon

• Port wheelchair-accessible gate

Helm

• Speedometer, tachometer, fuel gauge & trim gauge

• Adjustable, swiveling & reclining helm chair w/ self-leveling arms & storage pouch

• Back-lit switch legends

• Built-in footrest

• Recessed storage area

• Enclosed in-console cooler compartment w/ door-mounted molded storage

• Ergonomically-located throttle & steering wheel

• Tilt steering wheel

• Illuminated, flush-mounted push-button stainless steel switches

• Fire extinguisher

• Horn

• Kicker® stereo w/ Bluetooth® input & 4 speakers

• Molded shroud w/ soft-touch finish

• Automotive-style fuse panel

Interior

• Luxury woven cushioned floor

• Easy-to-deploy color-coordinated 10' (3.048 m) bimini top w/ LED lighting, storage pockets, matching protective boot w/ logo & power up & down feature

• Extra deep rain channels on all molded couch bases for drier storage

• Stowable table w/ molded-in drink holders

• Plush port & starboard bow lounges w/ rotomolded, drained storage

• Aft L-lounge w/ rotomolded, drained storage

Performance

• 3 powder- & clear-coated pontoon logs w/ lifting strakes

• Aluminum deck undercladding

• Factory-rigged Mercury® outboard motors

• Performance enhancing extended motor pod

• Factory-matched propeller
